ANENG 4.7-Inch LCD Display AC/DC Digital Multimeter Ultraportable True-RMS Multimeter Auto-Ranging Multi Tester with Amp Volt Ohm Capacitance Continuity Temperature Frequency Diode Tests NCV Tester fo

Info:
features palm-size, 4.77-inch big LCD display, auto-ranging, true-RMS, overload protection, shockproof silicone cover, and audible NCV alarm. It is ultraportable for the maintenance of cars, electronics, home appliances, HVAC and more.

Features:
MULTIMETER: Measures AC/DC current, AC/DC voltage, non-contact AC voltage (NCV) detection, live/zero line detection, resistance, diode, capacitance, temperature, and frequency.
LOUD BEEP: NCV sensor and live/zero line detector send out audible and visual alarm once AC voltage detected.
EASY TO READ: 4.77-inch LCD display with backlight enables you to view readings clearly even in the dim light.
EASY TO USE: Offers you with auto-ranging and manual ranging mode for extremely simple using experience.
SAFE AND RELIABLE: Provided with overload protection and 1000V, 10A test leads, safe and reliable to use.
LONG-LASTING: Shockproof and non-slip silicone sheath effectively protects the unit from damage.

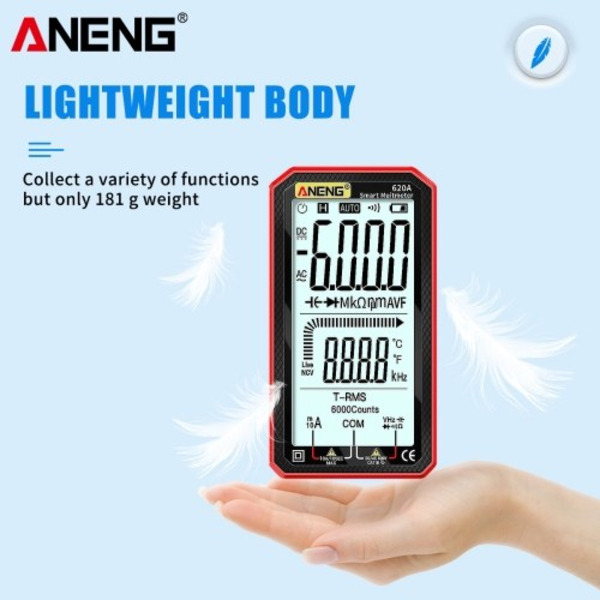

ULTRA PORTABLE: Measures in 5.6 by 3 by 0.9 inches, the palm-sized multimeter is small enough to be held in hand or put into pocket, easy to carry around.
AUTO-OFF: Auto power off within 15 minutes if there is no operation, helps conserve the battery.
MORE FUNCTIONS: Features data hold, flashlight, Celsius/Fahrenheit degree, and more.

Note:
*MUST read the user manual carefully before use for safety.
*Battery not included.

Parameters:



AC Current


Range
Resolution
Accuracy


6000mA
1mA
(1.0% reading + 8 digits)


10A
0.01A


DC Current


6000mA
1mA
(1.0% reading + 5 digits)


10A
0.01A


DC Voltage


6V
0.001V
(0.5% reading + 3 digits)


60V
0.01V


600V
0.1V


AC Voltage


6V
0.001V
(0.8% reading + 5 digits)C


60V
0.01V


600V
0.1V


Continuity (overload protection: 600V DC/AC, True-RMS)


-
0.1Ω
If resistance of the line being measured is less than 50Ω, built-in buzzer will make continuous alarming sounds.


Resistance


600Ω
0.1Ω
(0.8% reading + 3 digits)


6kΩ
0.001kΩ


60kΩ
0.01kΩ


600kΩ
0.1kΩ


6MΩ
0.001MΩ


60MΩ
0.01MΩ


Diode Test
(Testing Environment
Testing current: about 1mA;
Open circuit voltage: about 2.8V
The display shows an approximation of forward voltage drop of diode.)


-
1V
0.001V


Capacitance


6nF
0.001nF
(10% reading + 40 digits)


600nF
0.1nF
(2.5% reading + 20 digits)


6μF
0.001μF


60μF
0.01μF


600μF
0.1μF


6mF
1μF


60mF
0.01mF


Temperature


-40 ~ 1000 ℃
1℃
(1% reading + 3℃)


-40 ~ 1832℉
1℉
(1% reading + 3℉)


Frequency (via gear A)
Input signal range: 1/4 Full-scale value, 2A AC Current(True-RMS)


100.0Hz
0.1Hz
(1.0% reading + 5 digits)


1000Hz
1Hz


Frequency (via gear V)
Input signal range: 0.8V AC Voltage(True-RMS)


100.0Hz
0.1Hz
(1.0% reading + 5 digits)


1000Hz
1Hz
